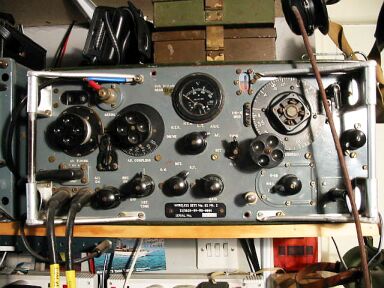

The Pye Wireless Set No 62
Is a low
power high frequency transceiver designed to operate from a 12 volt DC
supply.
It was intended for both military and civilian purposes and could
be used as a mobile or fixed station.
As a military equipment it was
adopted by the British Army for use in the following roles:-
a)
Un-armoured vehicle station.
b) Man-pack / animal-pack station.
c) Fixed
station.
|
|
As a civil equipment it could be used
as a general purpose, high frequency fixed or mobile station by
police, oil companies, postal administrations and similar authorities.
Operation of the equipment was simplified to such an extent that operators
needed the minimum of instruction.
Facilities provided by the 62 set were RT and CW with provision for netting the operating frequency to a base
station.
|
|
Power for a crystal calibrator and an
operators lamp or remote control equipment ,can also be drawn from the
equipment if required.
A remote control unit is available providing inter
- communication between the transceiver and control point, as well as
remote operation of the 62 set over line or cable.
Essential controls are luminised and a lamp can be supplied with special ultra violet adapter to
enable the set to be used without illumination.
|
Manual and
Circuit
available
Details Below
As a Download
Click Here |
Two drop leads may be plugged into the
equipment enabling two headsets and a morse key to be used at the same
time.
The62 set was designed to work into rod aerials or into an end-fed
horizontal wire aerial.
The 62 set has a frequency coverage of 1.6 to 10.0
Mc/s divided into two bands, 1.6 to 4.0 Mc/s and 4.0 to10.0 Mc/s.
In
addition to normal tuning, a flick mechanism is incorporated for setting
up on any two spot frequencies in the range 1.6 to 10.0 Mc/s.
|
|
Both transmitter and receiver are
tuned by the same controls and are automatically on the same frequency.
The equipment is continuously tunable over the complete frequency range or
can be controlled on a spot frequency.
Construction
The Wireless
Set No 62 is housed in a steel case complete with carrying harness
and front cover.
It is both splash and rain-proof and will float
supporting an additional weight of up to 20lb.
|
Manual and
Circuit
available
Details Below
As a Download
Click Here |
This fact renders it most dangerous
for a man to attempt to swim with the equipment strapped to his back.
All
controls and connections are mounted on the front panel.
The chassis is so designed that when removed from its case adequate
mechanical protection is afforded to all vulnerable components.
The
external metal work is finished in Drab Olive and Dark Admiralty
Grey.
|
|
The equipment is tropicalised and the
components have been chosen to ensure efficient operation in the extreme
climatic conditions encountered in tropical and arctic regions.
Range of Working
This varies with the length of aerial used.
Using a 14ft aerial, the approximate ranges under good conditions
are :-
Stationary - CW 25 miles, R/T 15 miles, Mobile- CW 20 miles, R/T 11
miles.
The weight of the 62 set is 30 lbs, (13.5kg) |
Manual and
Circuit
available
Details Below
As a Download
Click Here |
The Manual contains the following
I have a 53 page manual on the 62 set it includes all Circuits Layouts Component lists etc on various versions, plus 35 pages Working Instructions.
Total of 88 A4 Pages containing the following :-
Prices below
General Description
Introduction
Construction
Specification
Transmitter and Receiver Alignment
Circuit Diagrams of different versions
Layouts top and bottom
Parts Lists
Circuit Description
Remote Control unit
Inverter Assay
Valve base pin connections
Aerials and Settings
Block Diagram
It is comprehensive and gives all the relevant information to renovate a 62 Set, I used this manual to renovate my 62 Set
|
